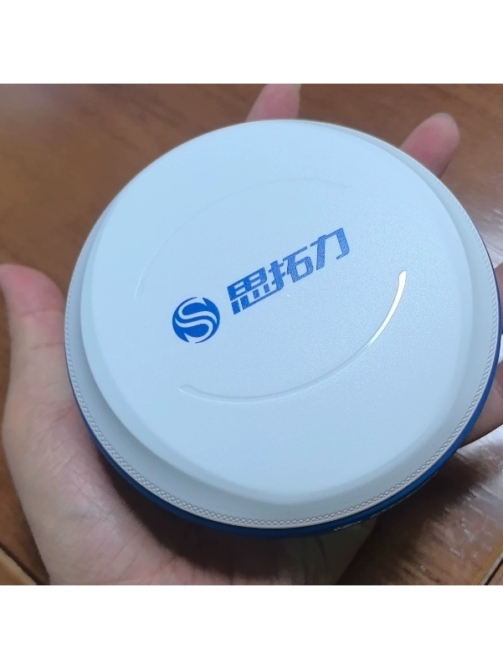

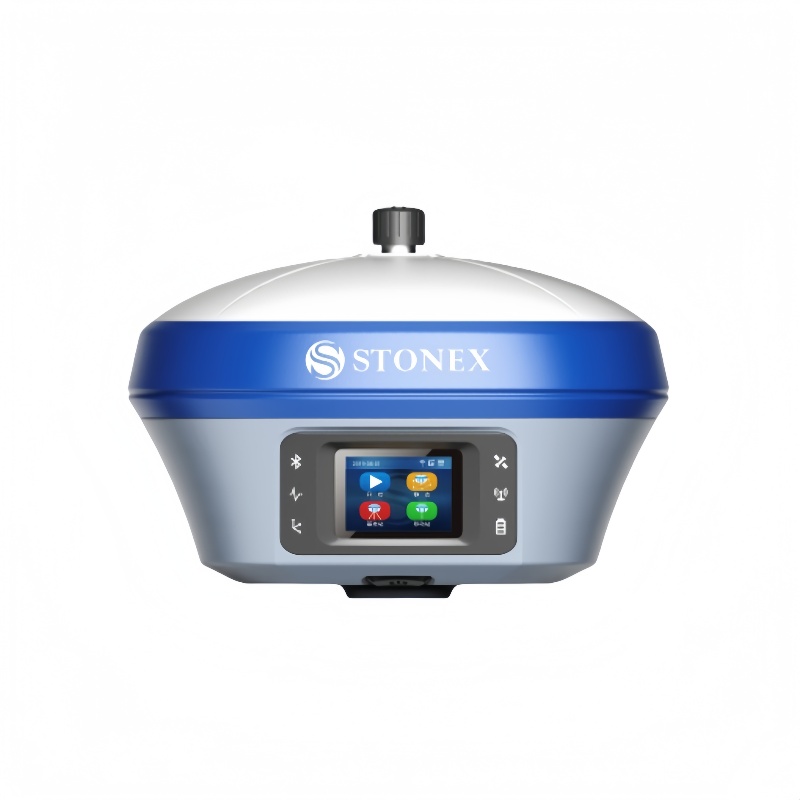

| Model |
S980A/S6II |
| Receiver |
|
| Satellite signal tracked |
GPS: L1C/A, L1C, L1P, L2C, L2P, L5 |
| GLONASS: L1C/A, L1P, L2C/A, L2P, L3 |
| BEIDOU: B1, B2, B3, ACEBOC |
| GALILEO: E1, E5a, E5b, ALTBOC, E6 |
| QZSS: L1C/A, L1C, L2C, L5, L6 |
| IRNSS: L5 |
| SBAS: L1, L5 |
| L-Band |
Altas H10/H30/Basic(optional) |
| Bridging of RTK outages |
aRTK-Works up to 20 minutes |
| Channels |
800 |
| Position Rate |
10Hz(optional 20-50Hz) |
| Signal Reacquisition |
< 1s |
| RTK Signal Initialization |
Typically < 10s |
| Hot Start |
Typically < 15s |
| Initialization Reliability |
> 99.9% |
| Internal Memory |
32 GB |
| Tilt sensor |
E-BubbleIMU(optional) |
| Positioning |
| STATIC GNSS SURVEYING |
| High Precision Static Horizontal |
2.5mm + 0.1ppm RMS |
| High Precision Static Vertical |
3.5mm + 0.4ppm RMS |
| Static and Fast Static Horizontal |
3mm + 0.5 ppm RMS |
| Static and Fast Static Vertical |
5mm + 0.5ppm RMS |
| CODE DIFFERENTIAL POSITIONING |
| Accuracy |
0.40m RMS |
| SBAS POSITIONING |
| Accuracy |
0.60m RMS |
| REAL TIME KINEMATIC(< 30km)- NETWORK RRK |
| Fixed RTK Horizontal |
5mm + 1ppm RMS |
| Fixed RTK Vertical |
10mm + 1ppm RMS |
| RTK Signal Initialization |
2 to 8 seconds |
| INTEGRATED GNSS ANTENNA |
| High accuracy four constellation antenna, zero phase center, with internal multipath suppressive |
| INTERNAL RADIO 2-5 WATT |
| Type |
Tx – Rx |
| Frequency Range |
410-470 MHz |
| Channel Spacing |
12.5KHz / 25KHz |
| INTERNAL MODEM |
| Band |
LTE FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28LTE TDD: B38/B39/B40/B41 |
| UMTS: B1/B2/B4/B5/B6/B8/B19 |
| GSM: B2/B3/B5/B8 |
| Nano SIM card |
| COMMUNICATION |
| I/O Connactors |
5 pins Lemo, connect the external power supply and external radioType-C. for receiver power supply and data transfer |
| 1 PPS port |
| GNSS port for external antenna |
| Bluetooth |
2.1 + EDR, V4.1 |
| Wi-Fi |
802.11 b/g/n |
| Web UI |
To upgrade the software manage the status and setting, data download, etc. via Smartphone, tablet or other electronic device with |
| Wi-Fi capability |
| Reference outputs |
RTCM 3.0, 3.2CMR, CMR+, DGPS |
| Navigation outputs |
NMEA 0183 |
| POWER SUPPLY |
| Battery |
Internal rechargeable 7.2V-13,600mAh |
| Voltage |
9 to 28 V DC external power input with over-voltage protection( 5 pins Lemo) |
| Working Time |
Up to 10 hours |
| Charge Time |
Typically 4 hours |
| PHYSICAL SPECIFICTION |
| Dimensions |
φ151mm * 92mm |
| Weight |
1.48 Kg |
| Operating Temperature |
-40℃ to 65℃(-40℉ tp 149℉) |
| Storage Temperature |
-40℃ to 80℃(-40℉ tp 176℉) |
| Waterproof/Dustproof |
IP67 |
| Shock Resistance |
Designed to endure to a 2m pole drop on concrete floor with no damage |
| Vibration |
Vibration resistant |
